A network engineer must enable the helper router to terminate the OSPF graceful restart
process if it detects any changes in the LSA. Which command enables this feature?

A.

nsf ietf helper disable

B.

nsf cisco enforce global

C.

nsf ietf helper strict-lsa-checking

D.

nsf Cisco helper disable

What is the difference between SNMP and model-driven telemetry?

A.

Telemetry allows for modeled network data to be pushed to the network administrator on
an as-needed basis

B.

Telemetry uses traps and inform messages to deliver data to a network administrator on
a polling basis

C.

SNMP uses the YANG data modeling language

D.

SNMP pushes network data to the network administrator whenever it is queri

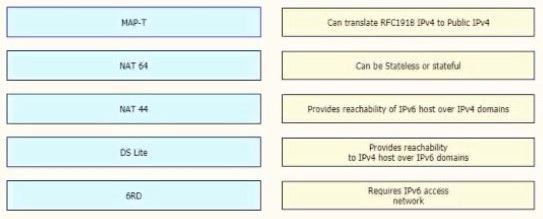

Drag and drop the functionalities from the left onto the target fields on the right

Refer to the exhibit

Export statistics received do not include the BGP next hop.
Which statement about the NetFlow export statistics is true?

A.

Only the origin AS of the source router will be included in the export statistics.

B.

Loopback 0 must be participating in BGP for it to be included in the export statistics.

C.

The origin AS and the peer-as will be included in the export statistics.

D.

To include the BGP next hop in the export statistics, those keywords must be included
with the version 9 entry.

ASN 65001 is peering with ASN 65002 to exchange IPv6 BGP routes. All routes that
originate in ASN 65001 have a standard community value of 65001:100, and ASN 65002 is
allowed to advertise only 2001 :db8:aaaa::/48. An engineer needs to update the ASN
65001 route-filtering configuration to meet these conditions:
* Looped routes into ASN 65001 and routes that have traversed 10 or more ASNs must be
denied.
* Routes accepted into ASN 65001 must be assigned a community value of 65001:200.
Which configuration must the engineer apply to the ASN 65001 border router?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

Refer to the exhibit:

After implementing a new design for the network, a technician reviews the pictured CLI
output as part of the MOP.
Which two statements describe what the technician can ascertain from the ImpNull output?
(Choose two.)

A.

Label 0 is used for the prefix displayed but will not be part of the MPLS label stack for
packets destined for 192 168.10.10.

B.

Ultimate Hop Popping is in use for the prefix displayed.

C.

Label 0 is used for the prefix displayed and will be part of the MPLS label stack for
packets destined for 192.168.10.10

D.

Penultimate Hop Popping is in use for the prefix displayed

E.

Label 3 is in use for the prefix displayed and will be part of the MPLS label stack for
packets destined for 192.168.10.10

Refer to the exhibit.

An engineer is configuring an administrative domain in the given multi-vendor environment
with PIM-SM. Which feature must the engineer implement so that devices will dynamically
learn the RP?

A.

Auto-RP

B.

BIDIR-PIM

C.

SSM

D.

BSR

Which two IS-IS parameters must match before two Level 2 peers can form an adjacency? (Choose two)

A.

authentication settings

B.

area ID

C.

system ID

D.

MTU

E.

hello timer setting

Refer to the exhibit

What is significant about the number 2 in the configuration?

A.

It is the numeric name of the ACL that contains the list of SNMP managers with access
to the agent

B.

It dictates the number of sessions that can be open with the SNMP manager

C.

It indicates two SNMP managers can read and write with the agent using community
string cisco test

D.

It represents the version of SNMP running

Refer to the exhibit:

What does this value mean when it is received in XML?

A.

It shows the ending of the script

B.

It indicates a break in a sequence

C.

It indicates a value assigned by a network administrator to tag a route

D.

It means a data fie4d is blank

Which statement about the Cisco MPLS TE forwarding adjacency feature is true?

A.

It enables the headend and tailend routers to establish a bidirectional tunnel

B.

It enables the tailend router to advertise routes to the headend router over the tunnel

C.

It enables the MPLS core to use EIGRP as the routing protocol

D.

It enables the Cisco MPLS TE tunnel to be advertised into the running IGP.

Refer to the exhibit.

Which show command should be implemented to display per-interface statistics about
uRPF drops and suppressed drops?

A.

show ip traffic

B.

showip interface

C.

show cef interface

D.

show ip interface brief
